Description

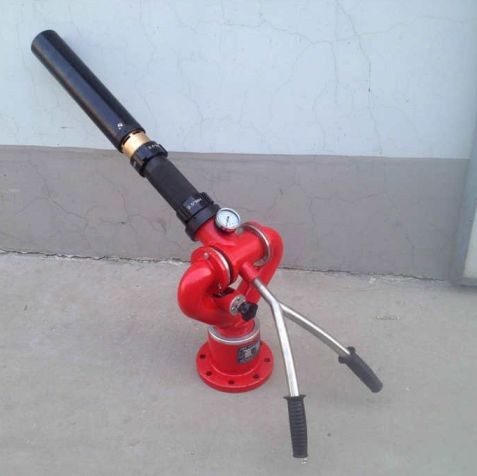

Fixed Manual Fire Fighting Water Foam Cannon Monitor
Part 1:Product introduction
PL series foam/water dual purpose monitor is a new type of multi-functional fire extinguishing equipment, which can spray
water to extinguish general solids and spray air foam to fight oil and flammable liquids. Advantages of this series of monitor:
jet concentration, long range, large fire-extinguishing area, multiple functions, flexible and convenient operation, the gun can
be rotated and locatable and locked.It can be equipped in all kinds of foam fire trucks, fire boats, high platforms, fixed fire
turrets and fire pipelines.
Part 2: product characteristics
PL series foam/water dual purpose gun is mainly composed of base, shell, nozzle, barrel, horizontal rotation and other
mechanisms.Foam liquid into the shell by the base, then through the diffusion atomization nozzle, and from the monitor barrel
tail air inhaled air bubble formation, extinguishing by ejecting bubble gun barrel, the operator can through horizontal rotary and
prone to adjust gun position alignment point, spraying should be as far as possible with the wind, fire fighters is safe and can
give full play to the performance.。
Part 3:Performance parameter
Mold
Working pressure (MPA)
Rated flow (L/S)
Foam range(M)
water range (M)
Expansion
Pitching angle(°)
Horizontal turning angle(°)
Drainage time (min)
PL24
0.5-1.2
24
40
45
≥6
-30°～70°
360
≥2
PL32
0.5-1.2
32
45
50
≥6
-30°～70°
360
≥2
PL48
0.5-1.2
48
50
55
≥6
-30°～70°
360
≥2
