Description

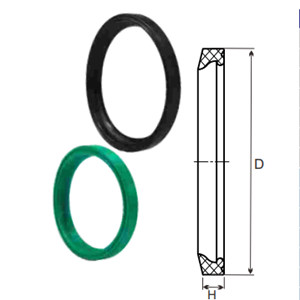

Storz Coupling Seals Gasket
When the storz coupling is connected , they need the gasket to make sure no leakage .
The gasket have two types ,one is for delivery only ,the other is for delivery and suction operation .
They looks different .
The gasket material can be NBR ,VITON . The color are NBR-BLACK & WHITE , VITON-GREEN .
SEALS FOR DELIVERY OPERATION
| CODE | KA/MM | D | H |
| WO-STS-1-01 | 31 | 46 | 10 |
|
WO-STS-1-02 |
66 | 60 | 10.5 |
|
WO-STS-1-03 |
89 | 82 | 10.5 |
|
WO-STS-1-04 |
115 | 108 | 10.5 |
|
WO-STS-1-05 |
133 | 124 | 12.5 |
|
WO-STS-1-06 |
148 | 138 | 13.1 |
|
WO-STS-1-07 |
160 | 152 | 13.1 |
SEALS FOR DELIVERY AND SUCTION OPERATION
| CODE | KA/MM | D | H |
|
WO-STS-1-11 |
31 | 29.5 | 9 |
|
WO-STS-1-12 |
51 | 51 | 10 |
|
WO-STS-1-13 |
66 | 64 | 10.5 |
|
WO-STS-1-14 |
81 | 79 | 10.5 |
|
WO-STS-1-15 |
89 | 87 | 10.5 |
|
WO-STS-1-16 |
133 | 130 | 12.5 |
|
WO-STS-1-17 |
148 | 144 | 13.1 |
|
WO-STS-1-18 |
160 | 158 | 13.1 |
